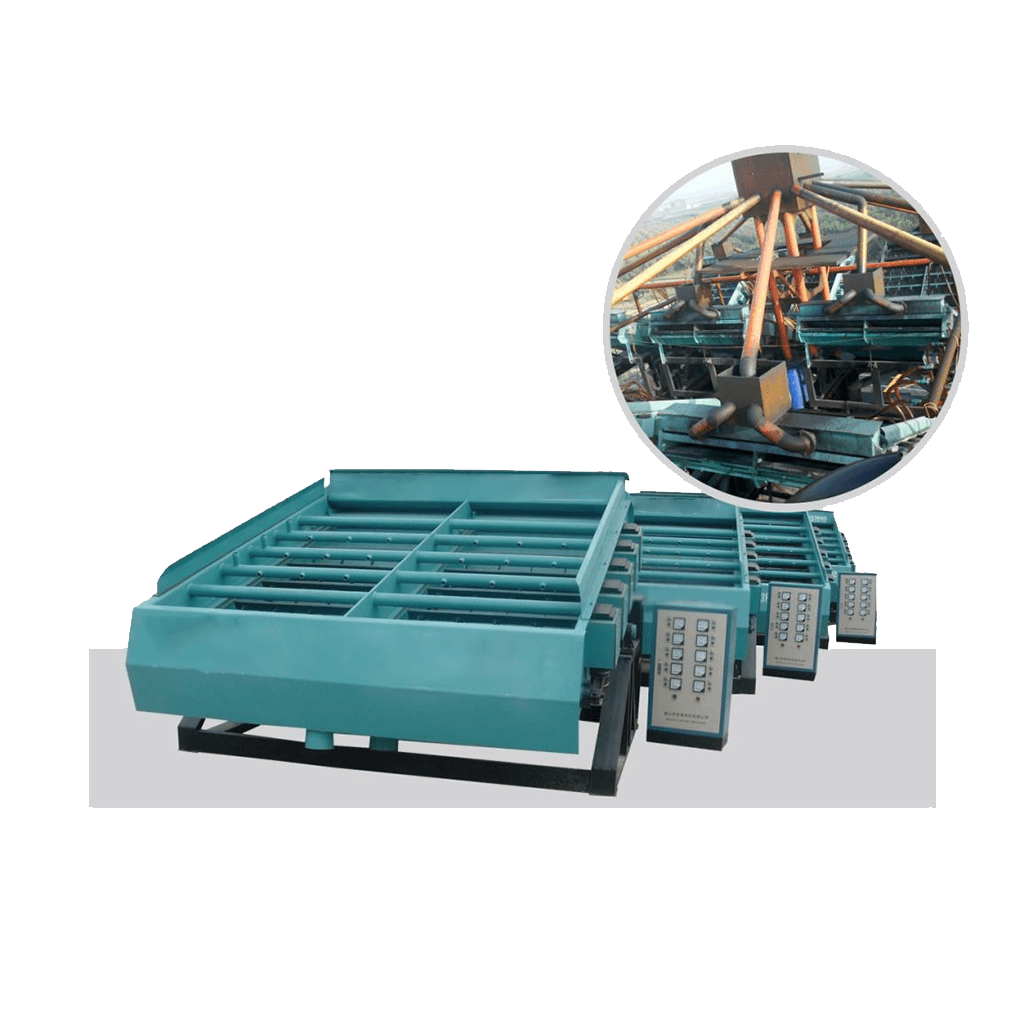

CNC Vibrating Screen – Guide
CNC Vibrating Screen apply for the principle of electromagnetic exciting vibration, the screen surface vibrates and the whole screen box stays still, little vibration, low power-consumption.
Vibrating strength is large (8 to 10 times gravitational acceleration), the percentage through screen is 10% to 50% more than common screens, screening efficiency is higher, capacity is larger.
The screen surface applies for three-tier screen meshes, the upper tier that doing the screening work is made of two-tier steel wire knitted composite screen mesh, the lower tier that connects with vibrating arm is made of steel wire core polyurethane support screen mesh.
It is used in classification, dewatering and disliming of fine material, and so on, and is used widely in mineral separation, coal, construction material, chemical industry, etc.
CNC Vibrating Screen Technical Data
1. Product Overview
The CNC Vibrating Screen separates materials precisely. We designs advanced screens for mining operations. This equipment uses electromagnetic vibration technology. The screen surface moves while the frame stays still. It works efficiently with fine materials.
2. Key Features
Strong vibration force (8-10G)
High screening efficiency
Low power consumption
Minimal frame vibration
Three-layer screen mesh
Large processing capacity
Durable construction
3. Working Principle
Electromagnetic system creates vibration
Screen surface moves rapidly
Materials separate by size
Fine particles pass through
Coarse materials discharge
Process continues automatically
4. Main Components Of CNC Vibrating Screen
Screen Surface
Three-layer design
Top layer: steel wire mesh
Middle layer: composite mesh
Bottom layer: polyurethane support
High wear resistance
Electromagnetic System
Generates vibration
Precise control
Adjustable intensity
Energy efficient
Reliable operation
Screen Box
Stable structure
No vibration transfer
Corrosion resistant
Easy maintenance
Safety features
Discharge Chutes
Separate material flows
Adjustable angles
Wear-resistant lining
Smooth material exit
5. Installation Guide
Prepare level foundation
Position screen properly
Connect power supply
Install feed chute
Set up discharge chutes
Check all fasteners
Test operation
6. Operation Tips
Control feed rate
Monitor vibration intensity
Check screen mesh condition
Watch material distribution
Clean regularly
Lubricate bearings
Record performance data
7. Maintenance Schedule
Daily visual inspection
Weekly bolt tightening
Monthly mesh cleaning
Quarterly bearing check
Yearly full service
8. Common Issues
Problem: Reduced efficiency
Solution: Clean screen mesh
Problem: Uneven vibration
Solution: Check electromagnetic system
Problem: Material buildup
Solution: Adjust feed rate
Problem: Loud noise
Solution: Inspect bearings
9. Advantages
Higher throughput (+10-50%)
Better classification
Lower energy use
Minimal maintenance
Longer screen life
Precise separation
10. Applications Of CNC Vibrating Screen
Mineral processing
Coal preparation
Construction materials
Chemical industry
Fine material classification
Dewatering operations
Slime removal
Conclusion
The CNC Vibrating Screen delivers precise material separation. We provides high-efficiency screens for industrial needs. Proper operation ensures best results. Regular maintenance extends equipment life.
Choose us for:
High-capacity screening
Energy-efficient operation
Low maintenance
Long service life
Superior classification
